Overview
SL NEO Time Delay provides reliable control over live broadcasts, enabling operators to delay, review, and manage content before it goes to air. The system supports flexible delay configurations from minutes up to 24 hours, ensuring protection against unwanted content and enabling time-shifted workflows.
Designed for multi-channel operations and compliance with local regulations, the platform offers an intuitive NLE-style timeline of the delayed signal. Operators can review content in advance, mark unwanted segments with In/Out points, and apply real-time processing such as blur, blackout, freeze, or overlays to both video and audio.
AI-assisted content detection allows automatic monitoring of multiple channels based on predefined rules, highlighting suspicious segments for operator validation. Final decisions always remain under full operator control.
The system also supports seamless replacement of advertising or other content blocks with localized inserts. With support for SD to UHD across SDI and IP streams, SL NEO Time Delay fits seamlessly into modern broadcast workflows.
Highlights
Flexible Time Delay & Loop Recording
Configurable delay from minutes up to 24 hours with continuous loop recording and instant access to any point in the buffer.
NLE-Style Timeline Editing
Review delayed content in a timeline interface with frame-accurate Mark In/Out and real-time editing of video and audio.
Content Moderation & AI Assistance
Manual or AI-based detection of prohibited content with operator validation and full editorial control.
Editorial Tools for Live Control
Apply skip, blackout, blur, freeze, overlays, or audio actions in real time to remove or replace unwanted segments.
Multi-Channel Compliance Workflows
Designed for operations requiring content verification across multiple channels and alignment with local regulations.
Local Insertions & Ad Replacement
Replace live segments with ads, promos, or disclaimers manually or via SCTE-35/104 triggers.
Key Features
- Real-Time Editorial Control
- ▸ Configurable delay from 5 minutes to 24 hours
- ▸ Frame-accurate intervention before content reaches air
- ▸ On-the-fly editing: skip, overlays, blackout, blur, freeze, mute, beep, audio replacement and captions
- ▸ Manual, automated, or AI-assisted content moderation workflows
- ▸ Emergency actions: instant replacement with file playback, blur, silence, or tone
- Timeline & Operator Interface
- ▸ NLE-style timeline for precise control of delayed content
- ▸ Visual marking of editorial actions (Mark In/Out) within the buffer
- ▸ Playlist view for upcoming segments and inserted content
- ▸ Configurable control via HotKeys, X-Keys panels, and GPI triggers
- AI-Assisted Workflows
- ▸ Automatic detection of prohibited or suspicious content across multiple channels
- ▸ Operator validation of AI-flagged segments (human-in-the-loop)
- ▸ Use of low-resolution proxy streams for faster AI processing and analysis
- ▸ Scalable multi-channel monitoring based on predefined rules
- Local Insertions & Ad Replacement
- ▸ Replace live segments with ads, promos, or disclaimers
- ▸ Manual or SCTE-104/35-triggered insertions
- ▸ Enables regionalization and compliance workflows
- Multi-Format Signal Support
- ▸ Unified support for SDI, ASI, and IP streams
- ▸ Protocols: ST 2110, NDI, SRT, RIST, UDP, RTP, RTMP, HLS, DASH, Zixi
- ▸ Resolution support up to UHD / 4K
- ▸ Simultaneous handling of multiple signal types
- Integration & Automation
- ▸ Integration with SL NEO Playout, Device Control, and automation systems
- ▸ Control via SCTE-104/35, GPI, and REST API
- ▸ Compatibility with AI-driven and third-party workflows
Integrated Ecosystem

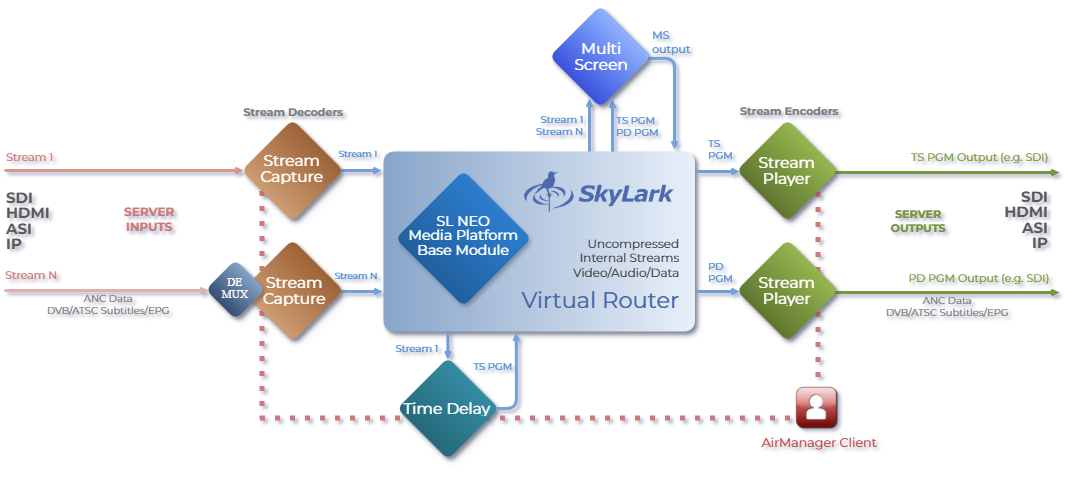

The SL NEO Time Delay is fully integrated into the SL NEO media services platform — a modular, software-defined environment where specialized modules operate together in real time across one or more hardware platforms.
Additional modules — including graphics, ad-insertion, and other workflow components — can be integrated to create a fully tailored broadcast solution:
SL NEO TS Multiplexer
For stream preparation and validation.
SL NEO Playout
For localization, commercial block insertion, and channel branding.
SL NEO Device Control
Automates source switching and responses to signal faults.
Control Systems Integration
Communicates via SCTE-104/35, GPIO, and REST API for AIdriven workflows and third-party automation systems.
Use Cases
Regional Insertion and Compliance
Use buffer segments for content switching, regional ad or program replacement, graphics overlays, or age gating based on jurisdiction or time zone.
Events Broadcast
Manage sensitive advertisement embedded in the content such as gambling ads by blurring the overlays.
Turnaround Channel & OTT Preparation
Validate TS and SDI content, replace or remove ads and inappropriate material, and insert binge markers to generate clean VOD exports.
Technical Specifications
SYSTEM
| Chassis | 2U — 4U, dual hot-swap power supplies |
| CPU | 1 or 2 x Intel Xeon or AMD Epyc Series |
| Memory | 32 / 256 GB DDR5 |
| System Drive | SSD for OS |
| Network | 2 x onboard 1GbE |
| Storage | Built-in RAID-10, 4 or 8 x SAS 3.5″ RE drives (4 or 8 TB), useful capacity |
| OS | Windows Server |
Video Formats & Color Spaces
| Formats | 625i/525i, 720p, 1080i/1080p, 2K 2048×1080p, 2160p |
| Frame Rates | 25 / 29.97 / 50 / 59.94 / 60 fps |
| Color Spaces | BT.601 / BT.709 / BT.2020, HDR: SMPTE ST 2084, ARIB STD-B67 |
I/O A/V Streams
| IP | HLS and DASH (DASH only input) MPEG-TS over UDP MPEG-TS over RTP with FEC NDI, RIST, RTMP, SMPTE ST 2110 Suite SRT, Zixi |
| ASI | EN50083−9 (coax) 214 Mbps per channel |
| SDI | 12G SDI in accordance to SMPTE ST 2082−10 3G SDI in accordance to ST 424M and ST 425M-A/B 1.5G SDI in accordance to ST 292M SD SDI in accordance with ST 259M Analog blackburst reference (tri-level or bi-level) |
| Formats | UHD: 2160p50/60M/60 HD: 1080p50/60M/60 1080i50/60M/60 1080p24M/24/25/30/30M 720p50/60M/60 SD: PAL, PAL-16×9, NTSC and NTSC-16x9 |
| Audio | Optional AES/EBU and Dante. |
I/O ANCILLARY/MPEG2 TS DATA
| CC Subs | ATSC EIA-608/708 Closed Captions DVB OP-42/ Teletext Subtitles DVB Bitmaps|Subtitles |
| EPG | ATSC PSIP |
| DPI | SCTE-104/SCTE-35 markers |
| VBI VANC | VITC, AFD, WSS |
DEVICE SUPPORT
| Panels | XKEYS XK-24/60/80 Support |
| Alarms | SNMP (SL NEO Software) |
EDITORIAL EFFECTS
| Video | Blackout, blur, freeze, skip and video and image overlays |
| Audio | Beep, mute and audio jingles overlays |
| CC/Subtitiling | Remove captions at timecode |
LOOP RECORDING CODECS
| Video | SD: DV25, DVCPro XDCAM IMX 30/40/50 HD: MPEG-2 420/422 H.264 420/422 XAVC 50/100 UHD: MPEG-2 420/422 H.264 420/422 XAVC 300 |
PLAYOUT CODECS
| Video | DVCAM, DVCPro 25/50 / HD 100 HDV 25 MPEG-2, MPEG 2 422 XDCAM IMX-30/40/50, EX 25/35, HD 18/25/35, HD 422 50 H.264 420/422 AVC-Intra 50/100 XAVC-S 420, XAVC-I/L 420/422 DNxHD 120 and 185 DNxHR-HQ, DNxHR-LB, DNxHR-SB ProRes HQ, ProRes, ProRes LT, ProRes Proxy HEVC |
| Audio Codecs | AAC, AC-3, MPEG-1 L-I/II, MP3, Opus and 16/24-bit PCM, ADPCM |
| Graphics | Still: BMP JPG PNG PSD Targa TGA TIFF Animated (with Alpha): TGA QTRLE (MOV) Hap Alpha (AVI, MOV) JPGA (AVI) PNG sequence |
| Video Containers | MXF-OP1A, MXF-D10 Avid MXF (OP-Atom) Sony XDCAM HD/422 (MXF-OP1A) Sony XAVC 50/100/200/300/480/Long-GOP (MXF-OP1A) P2 AVC-Ultra 50/100/200/300/480/LongG (MXF-OP1B) Microsoft AVI, MPEG PS/TS QuickTime MOV, DV DIFF MP4, MPG, GXF |
Hardware & Software Options
| Hardware Options | LTC Input (incl. supported LTC reader and software license: Adrienne AEC-4I, Plura PLC, Miranda Little Red, Horita TCI-50) GPIO (incl. supported USB GPIO and software license, up to 8 I/O ports: Ontrak ADU200, ADU2X8) GPU Board Increase Internal RAID Array Capacity 2x SSD in RAID-1 for System |
| I/O Interfaces & Boards | SDI / ASI — DekTec DTA-2172 / 2174B / 2175 / 2178 / 2179 / 2195 ASI / IP — DekTec DTA-2160 / 2162 with FEC Network — Mellanox ConnectX Video I/O — Matrox DSX LE3 / LE4, DataPath VisionRGB Capture — Blackmagic DeckLink Playout — Blackmagic DeckLink Other — Standard Ethernet, IEEE-1394, DirectShow |
| Additional Hardware Ports | SD / HD / 3 / 6 / 12G SDI, HDMI, ASI I/O ports NVIDIA ConnectX 10 / 25 / 40 / 50 / 100 / 200G ports for SMPTE ST 2110 / 2022−7 1G Ethernet ports for UDP / RTP IP with SMPTE 2022−1 FEC Standard 1 / 10G Ethernet ports for IP streams, control, file transfer RS-232 / 422 / 485, i-Link / IEE-1394 hardware ports AES I/O for Matrox DSX boards |
| Software Options | Transfer Manager PRO AI connectors Profanity Delay SCTE-104 / SCTE-35 Generation (for Single PGM Channel) EBU R128 Loudness Normalization (for Single Output Port) CEA-608 / 708, OP-42 / 47 Live Closed Captions (generation from Live Data Source or from Files, for Single PGM Channel) DVB / ATSC Subtitles (generation from Live Data Source or from Files, for Single PGM Channel) Main-Backup Channel Sync (for Single PGM Channel) NVENC Assistance (for file encoding or output stream encoding) TS Mux (up to 16x SPTS in 2x Groups) Air Manager NewsCut |
| Additional I/O & Channels | Capture Port (SDI / HDMI, ASI / IP with DeMux and Stream Decoding, all supported protocols including SDI / NDI Fill + Key) Output Port (SDI / HDMI, ASI / IP with Stream Encoding, all supported protocols including SDI / NDI Fill + Key) MultiScreen Processor (4, 8, 16 or 24 inputs — software license) Time Shift Channel (Full Resolution + Proxy) PGM Channel with Full Graphics (8 GR Layers + Logo Layer) PGM Channel with Lite Graphics (1 GR Layer + Logo Layer) Graphics for PGM Channel (Additional GR Layers) |
| Device Server Software Licenses | SDI Router for REC Automation (for single device) |
| SDI Routers Control Protocols | Grass Valley Triton BDS Grass Valley NVision / Native Protocol / Vega / M-2100 Nevion VikinX V128 / Thor Leitch Imagine LRC Kramer ProBel SW-P-02 / SW-P-08 ELPRO SD2 HD Series BMD Videohub Ethernet / RS-232 Snell Switcher / Remote Protocol Evertz Quartz / EQM-2 Sierra XV Utah SC-4 / RCP-1 Venux VM / SI / 300 ASCII Ross Video Proemaster / NK-SCP/A AJA KUMO |
