Overview
SL NEO Multiscreen is a software-based broadcast multiviewer and monitoring platform for centralized supervision of multiple video, audio, metadata, and signal sources across broadcast, production, master control, and IP environments.
The platform allows operators to build configurable mosaic layouts with multiple video windows, audio meters, clocks, logos, labels, alarms, and technical indicators on one or more displays. Layouts can be adapted for different operator roles, control rooms, channels, or monitoring tasks.
Multiscreen continuously monitors incoming signals and can visualize video and audio status, signal loss, freeze or black frames, audio levels, loudness, metadata, and other operational parameters. Configurable alarms and visual indicators help operators quickly identify problems and react before they affect transmission.
The platform supports SDI and IP-based workflows and can be used for master control rooms, production control rooms, network operations centers, contribution monitoring, and distributed broadcast facilities.
As part of the SL NEO Media Platform, Multiscreen integrates with ingest, playout, routing, redundancy, and monitoring workflows to provide centralized real-time supervision across broadcast infrastructure.
Highlights
Custom Mosaic Display
Key Features
- Multiview & Visualization
- ▸ Custom mosaic layouts with up to 52 video windows per screen
- ▸ Drag-and-drop configuration via browser-based Web UI
- ▸ Flexible PIP sizing, positioning, and layout presets
- ▸ Display of clocks, timers, and custom graphic elements within mosaics
- Signal Monitoring & QoE Control
- ▸ Real-time monitoring of video, audio, and transport streams
- ▸ Advanced QoE detection: Signal loss, Black frames / freeze / still image, Audio silence, low/high levels, loudness deviations
- ▸ SCTE-104 / SCTE-35 signal presence monitoring
- ▸ Closed captions and subtitle decoding (CEA-608/708, Teletext, DVB)
- Multi-Format & Protocol Support
- ▸ Unified monitoring across SDI, ASI, SMPTE ST 2110, NDI
- ▸ Full IP & OTT support: UDP, RTP, SRT, RIST, Zixi, RTMP, HLS, MPEG-DASH
- ▸ Ability to combine heterogeneous sources within a single mosaic
- Audio Monitoring
- ▸ Per-window audio metering (dBFS / LUFS)
- ▸ Flexible audio channel assignment
- ▸ Real-time audio confidence monitoring across all sources
- Outputs & Distribution
- ▸ Multi-output support: SDI, HDMI, DisplayPort
- ▸ IP output streaming: SMPTE ST 2110, NDI, RTMP, UDP, HLS, HTML5 web-based monitoring
- ▸ Remote multiview distribution over network
- Automation, Alarms & Failover
- ▸ Configurable alarm engine with visual and audio alerts
- ▸ Notification methods: Email, SNMP, GPI/GPO triggers
- ▸ Integrated automatic failover control (main/backup switching)
- ▸ Can operate as a signal-driven switching controller
- Control & Integration
- ▸ Full REST API for external control and monitoring
- ▸ Integration with routers, automation, and control systems
- ▸ Centralized alarm management via SNMP
- ▸ Supports distributed and cloud-based deployments
- Platform Integration
- ▸ Native integration within SL NEO Platform ecosystem
- ▸ Works with: Ingest & QC, TS Multiplexer, Playout & Automation, Failover systems
- ▸ Acts as a visual command center across the entire workflow

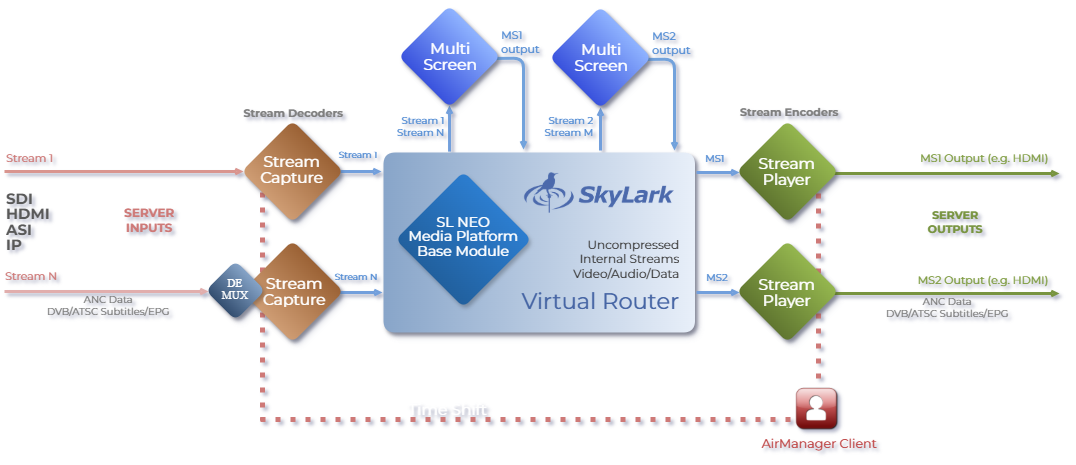

Workflow
Multiscreen analyzes video and audio signals in real time and generates alerts based on detected issues.
Usage: events, email notifications, automatic failover switching
Detection: Usage: events, email notifications, automatic failover switching
Detection:
Video Frozen, Video Black, Audio Silence, Audio Overload, No Signal
No Signal: instant detection without decoding, low CPU usage, works even for unavailable or remote streamsVideo Frozen, Video Black, Audio Silence, Audio Overload, No Signal
No Signal: instant detection without decoding, low CPU usage, works even for unavailable or remote streams
Multiscreen records all triggered alerts, providing a clear history of detected signal issues for monitoring and analysis.
Multiscreen allows saving configurations to files for backup and easy transfer between systems.
This tool enables users to create, edit, save, copy, and load all configurations — including PIPs and multiviewer layouts — both locally and remotely from any computer in the network.
Multiscreen can receive information from playlists in the Program Channel and Recorder modules and display it in the corresponding channel window (e.g., current clip, next clip).
It is possible to create separate PIPs with clocks, dates, and text using the built-in SL NEO Platform graphic designer.
Integrated Ecosystem
SL NEO Multiscreen is fully integrated into the SL NEO Media Platform — a modular, software-defined environment where signal monitoring, quality control, routing, redundancy, and transport-stream processing modules work together in real time.
Additional modules — including Easy Muxer, Media QC, Changeover, and SDI Router Controller — can be combined to build centralized monitoring, fault detection, and signal-control workflows across broadcast and IP infrastructures.
Use Cases
Technical Specifications
SYSTEM
| Chassis | 1U — 4U, dual hot-swap power supplies |
| CPU | 1 or 2 x Intel Xeon or AMD Epyc Series |
| Memory | 48 / 96 GB DDR4 |
| System Drive | SSD for OS |
| Network | 2 x onboard 1GbE |
| Storage | Built-in RAID-10, 4 or 8 x SAS 3.5″ RE drives (4 or 4 or 8 TB), useful capacity |
| OS | Windows Server |
Channels
| Mode | HD/SD | Ultra HD |
| Channels | 1 — 52 | 1 — 52 |
Video Formats & Color Spaces
| Formats | 625i/525i, 720p, 1080i/1080p, 2K 2048×1080p, 2160p |
| Frame Rates | 25 / 29.97 / 50 / 59.94 / 60 fps |
| Color Spaces | BT.601 / BT.709 / BT.2020, HDR: SMPTE ST 2084, ARIB STD-B67 |
I/O Streams: Interfaces, Protocols
| SDI | SDI 1.5G to 12G, embedded audio |
| IP (Broadcast) | SMPTE ST 2110, SMPTE ST 2022−7 |
| IP (Streaming) | NDI, HLS, RTMP, UDP, RTP, SRT, Zixi, RIST, MPEG-DASH, HTML5 web pages, YouTube, Facebook, and Twitch |
| DVB / ATSC IP | UDP / RTP, Unicast / Multicast, SPTS / MPTS |
| DVB / ATSC ASI | SPTS / MPTS |
| Video Codecs | HEVC, H.264/AVC, MPEG-2, NDI |
| Audio | Optional AES/EBU and Dante |
Protocols & Device Support
| Monitoring | SNMP (SL NEO Software) |
| Automation | REST API, Router & GPI control, SCTE-35/104 |
Advanced Monitoring
| Video | Black frames Freeze frames Pixelization Loss of video SCTE 104 status |
| Audio | Loss of audio Low and High levels Loudness |
| MPEG-2 TS | Loss of TS services SCTE 35 status |
| CC/Subtitling | ATSC EIA-608/708 Closed Captions DVB Subtitles DVB Teletext Subtitles |
IP Codecs
| Video Codecs | HEVC, H.264/AVC, MPEG-2, NDI |
| Resolutions | 3840×2160, 1920×1200, 1920×1080, 1440×1080, 1280×1080, 1280×720, 60×720, 1024×576, 720×576, 704×576, 640×576, 504×576, 854×480, 720×480, 704×480, 640×480, 504×480, 640×360, 480×360, 360×288, 480×270, 320×240 |
| Audio Codecs | AAC, Dolby AC-3, MPEG-2 Audio, MP3, NDI, Opus and Uncompressed 16/24bit PCM, ADPCM |
Input Ancillary & MPEG-TS Data
| Teletext / CC | OP-42 / OP-47 WST Teletext, Closed Captions |
| Closed Captions | CEA-608 / CEA-708, SRT, STL, EBU-XML |
| Subtitles / EPG | DVB / ATSC Subtitles |
| Markers | SCTE-104 / SCTE-35 with metadata |
| VBI / VANC | VITC, AFD, WSS |
Monitoring Environments
| Control Interfaces | Desktop client, Web UI, API |
| Audio Processing | Audio level control |
| Synchronization | LTC, NTP, Black-Burst, Tri-Level |
Hardware & Software Options
| Hardware Options | LTC Input (incl. supported LTC reader and software license: Adrienne AEC-4I, Plura PLC, Miranda Little Red, Horita TCI-50) GPIO (incl. supported USB GPIO and software license, up to 8 I/O ports: Ontrak ADU200, ADU2X8) GPU Board Increase Internal RAID Array Capacity 2x SSD in RAID-1 for System |
| I/O Interfaces & Boards | SDI / ASI — DekTec DTA-2172 / 2174B / 2175 / 2178 / 2179 / 2195 ASI / IP — DekTec DTA-2160 / 2162 with FEC Network — Mellanox ConnectX Video I/O — Matrox DSX LE3 / LE4, DataPath VisionRGB Capture — Blackmagic DeckLink Playout — Blackmagic DeckLink Other — Standard Ethernet, IEEE-1394, DirectShow |
| Additional Hardware Ports | SD / HD / 3 / 6 / 12G SDI, HDMI, ASI I/O ports NVIDIA ConnectX 10 / 25 / 40 / 50 / 100 / 200G ports for SMPTE ST 2110 / 2022−7 1G Ethernet ports for UDP / RTP IP with SMPTE 2022−1 FEC Standard 1 / 10G Ethernet ports for IP streams, control, file transfer RS-232 / 422 / 485, i-Link / IEE-1394 hardware ports AES I/O for Matrox DSX boards |
| Software Options | Transfer Manager PRO NVENC Assistance (for file encoding or output stream encoding) Avid Unity / Interplay Support (for REC channels) Web Application Server |
| Client Applications | Air Manager, Rec Manager, NewsCut |
| Additional I/O & Channels | Capture Port (SDI / HDMI, ASI / IP with DeMux and stream decoding, all supported protocols) Output Port (SDI / HDMI, ASI / IP with stream encoding, all supported protocols) MultiScreen Processor (4, 8, 16 or 24 inputs — software license) REC Channel (Full Resolution + Proxy) |
| Device Server Software Licenses | VDCP for REC Automation (Slave mode for single REC channel) SDI Router for REC Automation (for single device) VTR for REC Automation (for single device) TSL 5 UMD (Master mode for single device) |
| SDI Routers Control Protocols | Grass Valley Triton BDS Grass Valley NVision / Native Protocol / Vega / M-2100 Nevion VikinX V128 / Thor Leitch Imagine LRC Kramer ProBel SW-P-02 / SW-P-08 ELPRO SD2 HD Series BMD Videohub Ethernet / RS-232 Snell Switcher / Remote Protocol Evertz Quartz / EQM-2 Sierra XV Utah SC-4 / RCP-1 Venux VM / SI / 300 ASCII Ross Video Proemaster / NK-SCP/A AJA KUMO |
